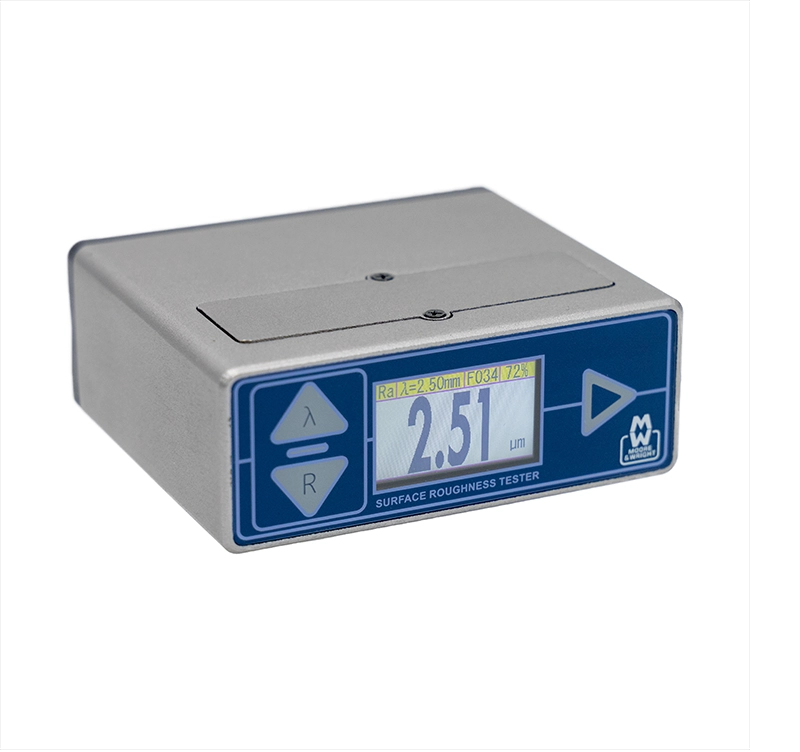

MOORE & WRIGHT (ANH) MWT-1100 Surface Roughness Tester (Ra: Rq:0.05 - 10.0; Rz: Rt: 0.1 - 50)
Manufacturer: MOORE & WRIGHT (ANH) Model: MWT-1100 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Stroke Length (mm): 5.6
Parameter (µm): Ra, Rz, Rq, Rt
Sampling Length (mm): 0.25, 0.80, 2.50
Static Force of Sensor Stylus (N): ≤0.016
Evaluation Length (mm): 1.25, 4.0, 5.6
Power Supply: 1.5V battery
Measuring Range (µm): Ra: Rq:0.05 - 10.0; Rz: Rt: 0.1 - 50
Weight (g): 165
Indication Variability: <6%
Working Environment Conditions
+ Temperature: 0˚C -40˚C
+ Relative humidity: < 90%
+ No vibration and corrosive medium around
Indication Error: ±10%
Arc Radius andAngle of Sensor Stylus Tip :
+ Tip arc radius: 10 μm±1μm
+ Angle: 90°
