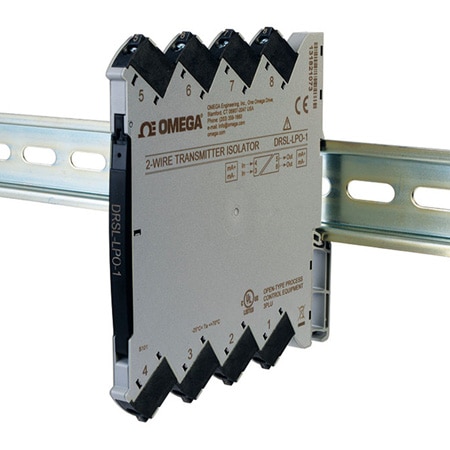

OMEGA DRSL-LPO-1 DIN Rail Output Loop Powered Isolators w/ 1 or 2 Channel Models (Current, 4 to 20 mA)

Width: 6.1 mm

Height: 113 mm

Length: 115 mm

Weight: 70 g

Accuracy: ±8 µA

Mounting: DIN Rail 35 mm Standard, EN 60715

Approvals: CE, UL, RoHS

Bandwidth: 100 Hz

Isolation: Isolation Voltage (Test): 2.5 kVac ;Isolation Voltage (Working):300 Vac

Input Type: Current

Wire Gauge: 26 to 12 AWG

EMC Standard: NAMUR NE 21

Installation: Pollution degree 2 and measurement/overvoltage category II

Output Value: Process

Voltage Loss: Input to Output: 2.5 V

Output Detail: Output Loop Current Limitation:24 mA typical Output Overload: 50 mA max

Output Signal: Current

Response Time: < 5 ms

Supply Voltage: 6 to 35 Vdc

Conversion Rate: 1:1

Input Range Note: Signal Range (Input to Output):3.8 to 20.5 mA;Signal Conversion: 1:1; Functional Range: 3.5 to 23 mA ;(NAMUR NE43 compliant);Available 2-Wire Transmitter (Tx) ;Supply: 3.5 to 32.5V

Number of Inputs: 1

EMC Immunity Note: Extended EMC Immunity NAMUR NE 21, A Criterion, Burst: <±1% of span

Electrical Output: 24 mA

Enclosure Ratings: IP20

Noise Calibration: >60 dB

Power Consumption: 50 mW

Relative Humidity: 0 to 95% RH (non-condensing)

Supply Power Type: DC

Response Time Note: Response Time (0 to 90%, 100 to 10%): <5 ms

Screw Terminal Torque: 0.5 Nm

Temperature Coefficient: ≤±0.02 µA [(T-25°C) x Vsupply]

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Current Measurement Range: 4 to 20 mA

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -25 °C

Calibration Temperature, Max: 28 °C

Calibration Temperature, Min: 20 °C

Temperature Coefficient Note: Temperature Coefficient (>25°C):≤±0.02 µA [(T-25°C) x Vsupply] Temperature Coefficient (<25°C):≤±0.07 µA [(T-25°C) x Vsupply]
