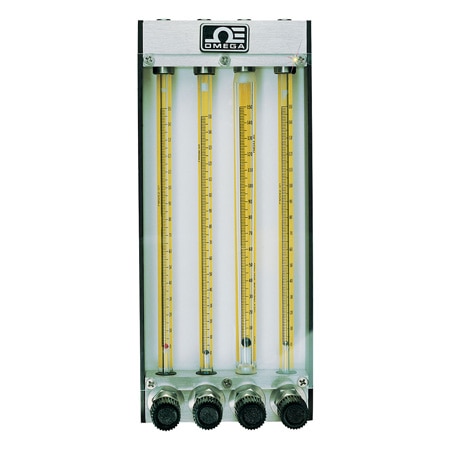

OMEGA FL-3AA-02G-02G-02G Multiple Tube Variable Area Flow Meters (1086 cm³/min, 0 m³/s, 1/8 in, NPT Female)
ManufacturerOMEGA(View more products from this manufacturer)
ModelFL-3AA-02G-02G-02G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 3.25 in
Height: 9.831 in
Accuracy: ± 2 %, ± 5% with transitional flow
Materials: Glass
Air Flow, Max: 1086 cm³/min
Repeatability: ± 0.25%
Valve Included: true
Number of Tubes: 3
Water Flow, Max: 0 m³/s
Materials, Wetted: Aluminum, Buna-N (NBR), Glass
Flow (Tube 1), Max: 1086 cm³/min
Flow (Tube 2), Max: 1086 cm³/min
Frame Flow Pattern: Frame A
Media Compatibility: Air, Water
Center-to-Center Length: 5.9 in
Operating Pressure, Max: 200 psi
Process Connection Size: 1/8 in
Process Connection Type: NPT Female
Process Temperature, Max: 121 °C
