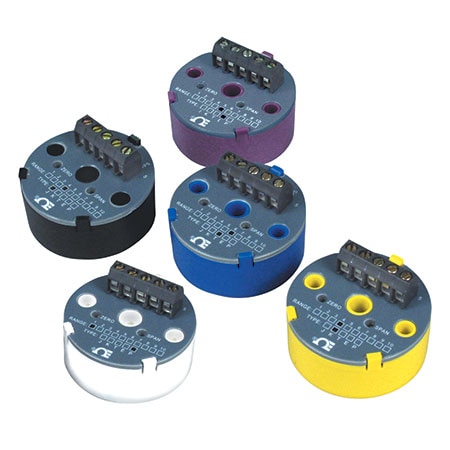

OMEGA TX91A-K8 Miniature Low-Cost Temperature 2-wire Transmitters (Thermocouple, K, 0 to 150 °C)

Height: 31.75 mm

Weight: 34 g

Accuracy: ± 0.1 %

Diameter: 44.5 mm

Linearity: ±0.1%

Hysteresis: ±0.1%

Input Type: Thermocouple

Calibration: Trimpot/Switch

Sensor Type: Transmitter

Probe Length: 0 mm

Accuracy Note: ±0.1% FS (includes effects of linearity, hysteresis and repeatability) referenced to the mV input

Repeatability: ±0.1%

Setup Controls: Trimpot/Switch

Supply Voltage: 8 to 50 Vdc

Dimensions Note: 31.75 H x 44.5 mm Dia (1.25 x 1.75"); height includes terminal strip

Sheath Material: N/A

Electrical Output: 4 to 20 mA

Supply Power Note: 8 to 50 Vdc; 24 Vdc recommended

Supply Power Type: DC

Thermocouple Type: K

Loop Resistance, Max: (Vs-8V)/0.02A

Electrical Connection: Screw Terminal

Temperature Input Range: 0 to 150 °C

Storage Temperature, Max: 121 °C

Storage Temperature, Min: -46 °C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Zero Setting Adjustable Range: ±10%
