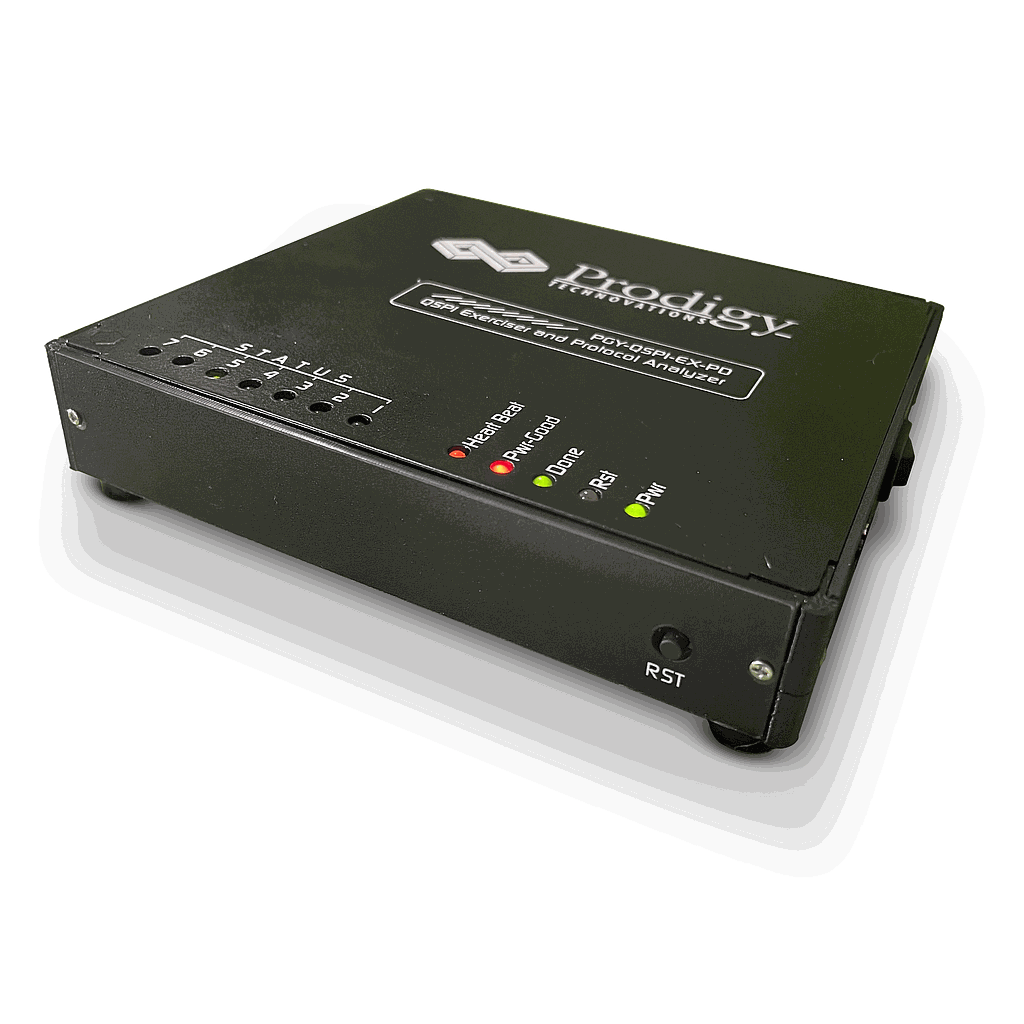

Prodigy PGY-QSPI-EX-PD QSPI Protocol Exerciser and Analyzer

Exerciser:

Configurable: 1 Master + 1 Slave

QSPI Traffic Generation: Custom QSPI traffic generation;  Simulate real-world network traffic

SCL Frequency: 100KHz to 80MHz*

Voltage Drive Level: Fixed 1.8V & 3.3V

SCL Duty Cycle variation: 25%, 50% and 75%

SCL & SDA Delay: User-Defined

Delay between two messages: User-Defined

QSPI modes supported: Extended, Dual and Quad

Transfer rate: STR and DTR

API Support: Support for Automation of operation using Python

Protocol Analysis:

Supports: QSPI protocol decode

Protocol Views: Timing Diagram View; Protocol Listing View; Bus-Diagram to display Protocol

packets with timing diagram plot.

Protocol Error report: Non-standard frame format

Capture Duration: Continuous streaming Protocol; Data to host HDD/SSD

Host Connectivity: USB 3.0/2.0 interface
