Altera Cyclone II 2C35 FPGA with 35000 LEs
Altera Serial Configuration devices (EPCS16) for Cyclone II 2C35
USB Blaster built in on board for programming and user API controlling
JTAG Mode and AS Mode are supported
8Mbyte (1M x 4 x 16) SDRAM
512K byte(256K X16) SRAM
4Mbyte Flash Memory (upgradeable to 4Mbyte)
SD Card Socket
4 Push-button switches
18 DPDT switches
9 Green User LEDs
18 Red User LEDs
16 x 2 LCD Module
50-MHz oscillator and 27-MHz (from TV decoder) for clock sources
24-bit CD-Quality Audio CODEC with line-in, line-out, and microphone-in jacks
VGA DAC (10-bit high-speed triple DACs) with VGA out connector
TV Decoder (NTSC/PAL) and TV in connector
10/100 Ethernet Controller with socket.
USB Host/Slave Controller with USB type A and type B connectors.
RS-232 Transceiver and 9-pin connector
PS/2 mouse/keyboard connector
IrDA transceiver
Two 40-pin Expansion Headers with diode protection
DE2 Lab CD-ROM which contains many examples with source code to exercise the boards, including: SDRAM and Flash Controller, CD-Quality Music Player, VGA and TV Labs, SD Card reader, RS-232/PS-2 Communication Labs, NIOSII, and Control Panel API

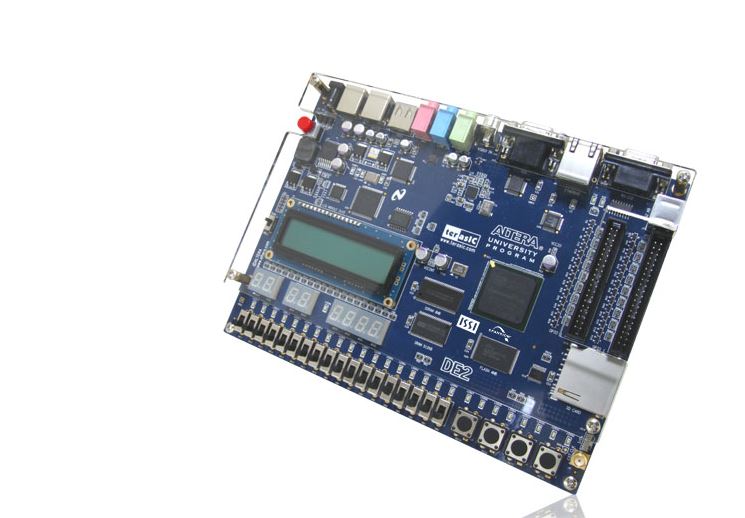

The purpose of the Altera DE2 Development and Education board is to provide the ideal vehicle for advanced design prototyping in the multimedia, storage, and networking.
It uses the state-of-the-art technology in both hardware and CAD tools to expose designers to a wide range of topics. The board offers a rich set of features that make it suitable for use in a laboratory environment for university and college courses, for a variety of design projects, as well as for the development of sophisticated digital systems. Altera provides a suite of supporting materials for the DE2 board, including tutorials, "ready-to-teach" laboratory exercises, and illustrative demonstrations.
