Altera MAX 10 FPGA, 10M08SAE144C8G, (or ES variant)
8,000 logic elements (LE)
378 kilobits (Kb) M9K memory
32 – 172 (KB) user flash memory
One analog-to-digital (ADC) converter, 1 million samples per second (MSPS), 12-bit
FPGA configuration circuitry
JTAG header for external USB-Blaster™, USB-Blaster II, or Ethernet Blaster download cable
Flash storage for two configuration images (factory and user)
Dual-image self-configuration via Programmer Object File (.pof)
Temporary engineering debug of FPGA design via SRAM Object File (.sof)
On-Board clocking circuitry
50 MHz oscillator connected to FPGA global clock input
General user I/O
8 analog input I/O, 14 Arduino I/O, 40 general purpose I/O
5 red user-defined LEDs
One green LED to show power from USB cable
Push button and DIP switches
One reconfiguration push button (SW2)
One device-wide reset of all registers, push button (SW1)
User DIP switch (SW3)
Power
The board is powered by USB cable (from PC or wall jack)
One green power-on LED (D6)
Probe points for manual, multi-meter measurement of current to calculate
Power consumption (TP2 - TP5) or to verify voltages on the selected internal nodes (TP1, TP6 - TP9)

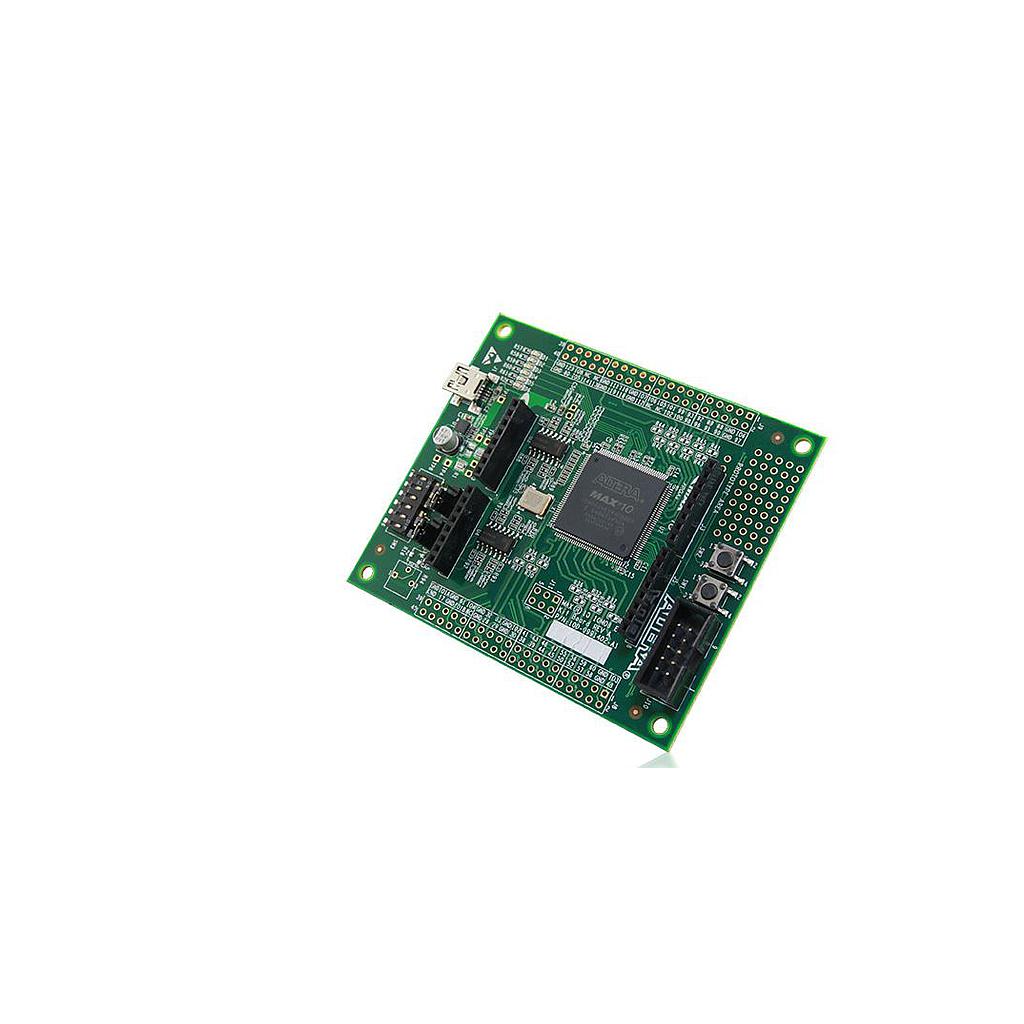

The 10M08 evaluation board will enable a cost effective entry point to MAX 10 FPGA design. The card comes complete with Arduino header socket, which will enable a wide variety of daughter cards to be connected.
