1) Microprocessor
- CPU : Intel® Atom™ Dual Core Processor N2600( 1M Cache, 1.6GHz )
Intel® Hyper-Threading Technology( 4 exection threads )
Intel SpeedStep® Technology
Instruction Set : 64-bit
Instruction Set Extensions : SSE2, SSE3, SSSE3
Integrated Graphics
Graphics Base Frequency : 400MHz
- Chipset : Intel® NM10 Express Chipset
DMI x2 to CPU
Intel® High Definition Audio
Serial ATA (SATA) 3 Gb/s
Universal Serial Bus(USB) Hi-Speed USB 2.0
PCI Express Gen 1
- Memory
DDR3 SO-DIMM SDRAM
- Display
VGA
HDMI 1.3a
- Intel® Centrino® Wireless-N 135
802.11b/g/n
Bluetooth 4.0
Wi-Fi Direct
- Audio Codec
Realtek ALC272VA3-GR
- BIOS
DIP package Bios Flash : GD25Q16
Programming Interface for Bios : Dedi-Prog Interface
-Debug Interface
XDP header
- Clock System
CK505 : 9VRS4339B
32768 Hz RTC crystal
27MHz VGA clock source
- Ethernet
Intel® 82583V GbE Controller
10/100/1000 Mb/s RJ45
3 status indicting LEDs
- Others
Power header for hard-disk
Current limit for USB
Buzzer
Mini PCIE header (Default for Intel® Centrino® Wireless-N 135 WiFi module)
mSATA header
RTC battery : CR2032
2) FPGA
- Featured Devices
Cyclone IV EP4CGX150DF31 device
149,760 LEs
720 M9K memory blocks
6,480 Kbits embedded memory
8 PLLs
FPGA configuration
JTAG and AS mode configuration
EPCS64 serial configuration device
On-board USB Blaster circuitry
- Memory devices
128MB (32Mx32bit) SDRAM
4MB (1Mx32) SSRAM
64MB (4Mx16) Flash with 16-bit mode
- SD Card socket
Provides SPI and 4-bit SD mode for SD Card access
- Connectors
Ethernet 10/100/1000 Mbps ports
High Speed Mezzanine Card (HSMC) (voltage levels: 2.5V)
40-pin expansion port (voltage levels: 3.3V)
VGA-out connector
VGA DAC (high speed triple DACs)
DB9 serial connector for RS-232 port with flow control
- Clock
Three 50MHz oscillator clock inputs
SMA connectors (external clock input/output)
- Display
16x2 LCD module
- Switches and indicators
18 slide switches and 4 push-buttons switches
18 red and 9 green LEDs
Eight 7-segment displays
- Other features
Infrared remote-control receiver module
TV decoder (NTSC/PAL/SECAM) and TV-in connector

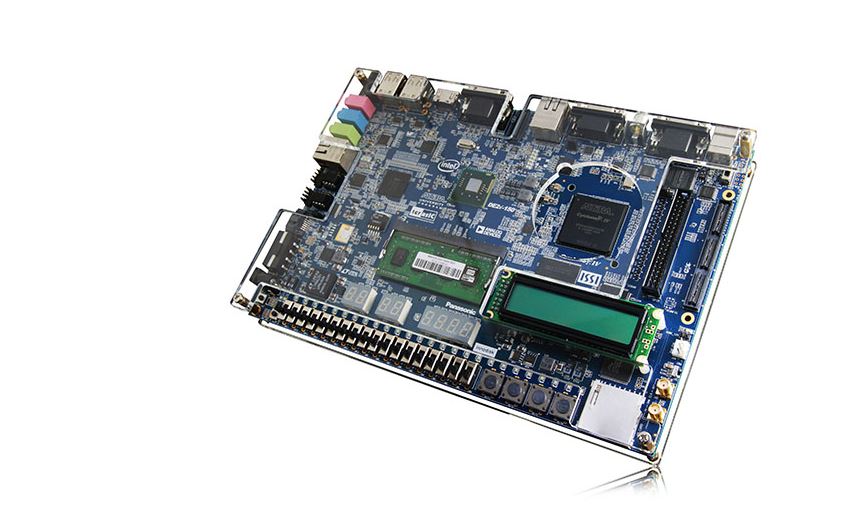

A groundbreaking embedded platform that combines an Intel embedded N2600 processor with the flexibility of an Altera Cyclone IV GX FPGA, DE2i-150 is a full-featured computer system that fuses together the world of high performance processing and unbelievably high configurability. The Altera Cyclone IV GX FPGA on the DE2i-150 board is able speed up the responsiveness of the system while still keeping your solution cost and power effective.
DE2i-150 is equipped with around 150K logic elements with ultimate flexibility in terms of reconfiguration of actual hardware circuity and intellectual property as well as on-board multimedia peripherals, extendibility options for a true system-ready solution for any task.
The Intel Atom processor and the FPGA device are linked together via two high-speed PCIe lanes such that high speed communication between them is guaranteed. DE2i-150 offers a powerful hardware-software co-development environment with amazing and unlimited potential.
