GYS NEOPULSE 320C W3 ALU PACK MMA, TIG, MIG/MAG Welding Machine Set (3ph; 400V; 10-320A; Skate trolley)

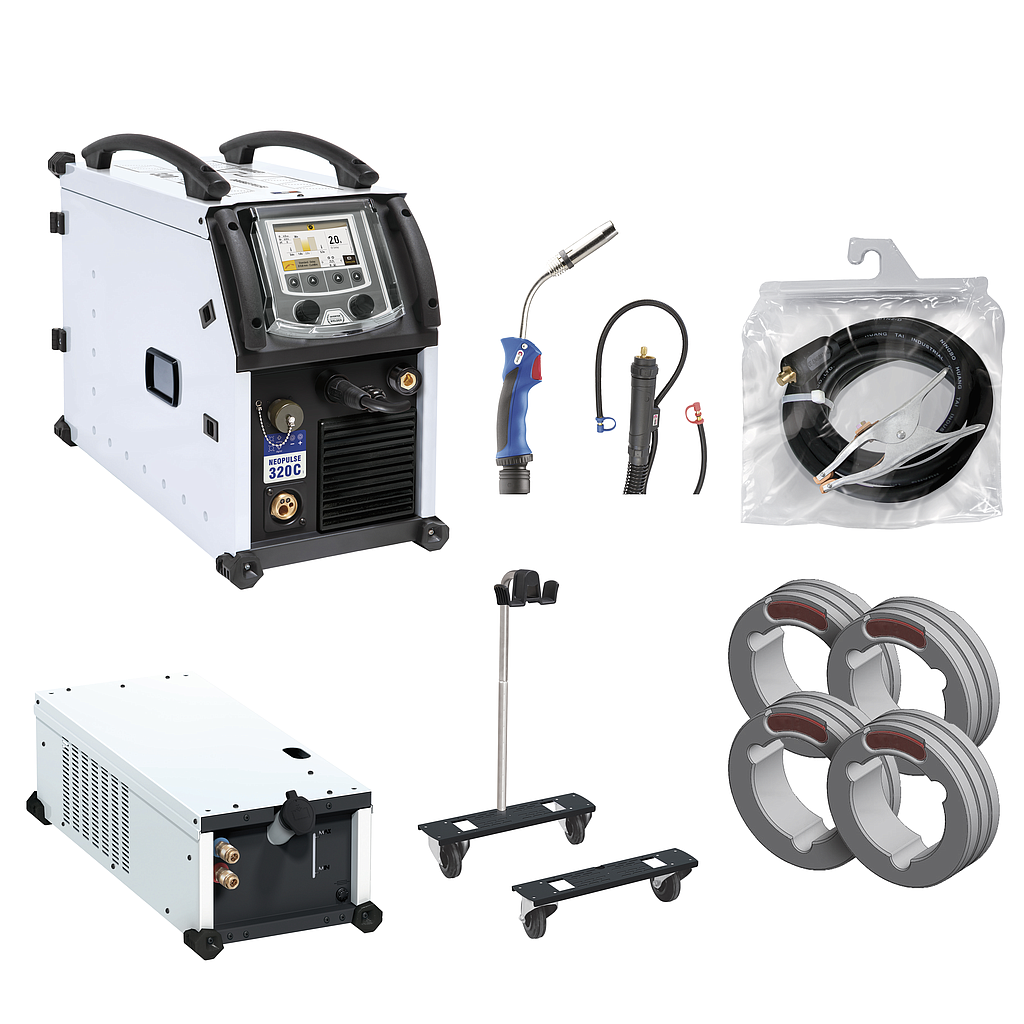

STANDARD DELIVERY:

1. NEOPULSE 320 C

The NEOPULSE 320 C is a digital 3 phase MIG/MAG pulse welding machine. Designed for the highest performance level using the latest technology, it features numerous synergic curves and exceptional arc quality/performance. User friendly and highly practical, the digital interface is designed for quick and easyadjustments of the welding parameters. Equipped with a precise 4-Roll drive system, this powersource provides unparalleled productivity and welding quality on all types of materials.

MULTI-PROCESS WELDING

▪ MIG/MAG :

- steel wire: Ø 0.6 to 1.2 mm

- stainless steel wire: 0.8 to 1.2 mm

- aluminium wire: Ø 0.8 to 1.2 mm

- CuSi and CuAl wire: 0.8 to 1.2 mm

▪ PULSED / DC MMA: basic, rutile and cellulosic electrodes (up to Ø 5 mm).

▪ PULSED / DC LIFT TIG

SMART

▪ SYNERGY mode: after selecting the material/gas combination and the wire diameter the NEOPULSE 320 C will automatically work out the optimal welding settings whilst still allowing you to adjust the settings (wire-feed speed, voltage, current and arc length).

ACCURATE

▪ Calibration of the weiding cables and motor speed, in order to adjust the voltage displayed and refine the energy calculation.

▪ Energy, display and energy calculation after welding based on standards EN1011-1, ISO/TR 18491 and QW-409. Portability: load/save user JOBS and machine settings using a USB stick.

▪ Traceability: track/record all welding steps, weld by weld, during industrial manufacturing in line with standard EN ISO 3834.

OPTIMISED MIG/MAG SETTINGS

▪ Welding processes: Manual, Dynamic STD, Pulsed, Arc Module (variation of hot/ co current)

▪ TACK modes: SPOT and DELAY.

▪ Trigger options supported: 2T and 4T.

▪ Precise control over the welding cycle: CreepSpeed, Softstart, Hotstart, Upslope, Downslope, Crater Fill, Postgas, etc.

MAXIMUM PRODUCTIVITY

Intended for heavy and demanding industrial applications:

▪ 4 microprocessors increase the speed of communication and optimize the efficiency of the power source.

▪  High productivity thanks to high duty cycle (300 A @ 60%).

▪ Compatible wire reels: Ø 200 / 300 mm.

▪ Connectable via a SAM control interface for use on robot/automaton (optional).

▪ Robust design to withstand shock and vibration

▪ Powerful electronically controlled wire feed motor (100 W) with 4 active drive rolls.

▪ Very high arc voltage for easier ignition and exceptional arc dynamic.

Specifications:

Power supply: 400 V, 3 ph, 50/60 Hz

Fuse: 32 A

Rate current output: 10-320 A

Duty cycle (environment temp. at 40°C):

   - Imax 320 @ 40%

        @ 60%: 300 A

        @ 100%: 280 A

Motor speed: 1 - 22 m/min, 4 motorized rollers

Cooling unit: WCU 1kW C (option)

Supported wire reels: Ø200-300 mm

Wire diameter:

            + Steel: 0.6 - 1.2 mm

            + Inox: 0.8 - 1.2 mm

            + Aluminum: 0.8 - 1.2 mm

            + CuSi/CuAl: 0.8 - 1 mm

            + Cored wire: 0.9 - 1.6 mm

No-load voltage: 85 V

Protection level: IP 23

Dimensions (L x w x h): 68 x 30 x 55 cm

Weight: 36 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 1.0/1.2 - F (steel, inox)

2. Cooling Unit WCU 1kW C 013537

3. Roller type F (x4) original equipment Ø 1.0/1.2 (thép/ inox); Ø 1.0/1.2 aluminum- 061903

4. Earth cable (4 m) 600A 70mm² 036994

5. Trolley skate 037717

6. Torch MIG/MAG GRIP aluminum 300A-3m 040748
