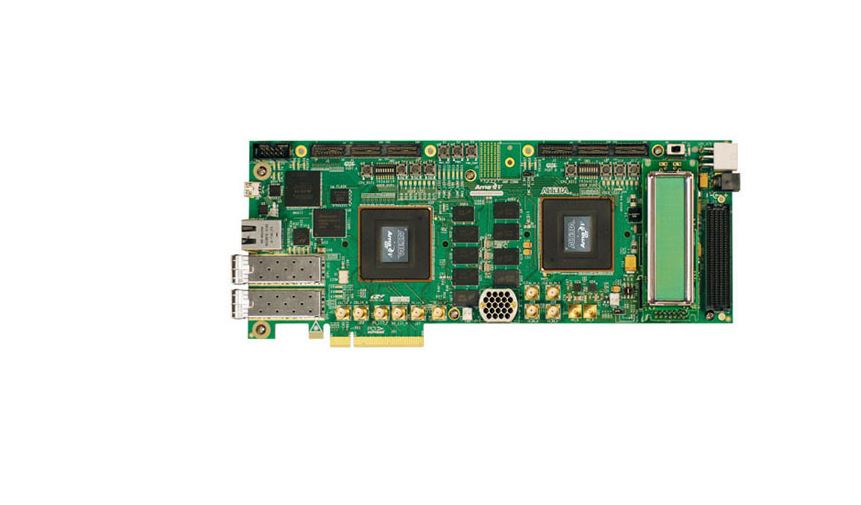

Terasic Altera Arria V GT FPGA Development Kit
Manufacturer: Terasic Model: Altera Arria V GT - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Unit 1: Arria V GT FPGA: 5AGTD7K3F40I3N
Memory
1,152-MB x72 DDR3 SDRAM
4.5-MB (1 Mb x 36) QDR II+ SRAM
1-Gb sync flash (x16)
Communication ports
PCI Express® (PCIe® ) x8 edge connector
HSMC Port A (Eight transceiver channels)
USB 2.0
Gbps Ethernet
Chip-to-chip bridge with 29 LVDS inputs and 29 LVDS outputs, and x8 transceivers
Two SFP+ channel
Bull's Eye connector (Three 10-Gbps transceiver channel)
SMA connector (One 10-Gbps transceiver channel)
Configuration
JTAG
Fast passive parallel (FPP) parallel flash loader (PFL)
Buttons, switches, LEDs, and displays
One CPU reset push button
Three user push buttons
Eight dual in-line package (DIP) switches
16 user LEDs (eight bi-color diodes)
Three PCIe LEDs
Three HSMA Status LEDs
16x2 character LCD
Unit 2: Arria V GT FPGA: 5AGTD7K3F40I3N
Memory
x64 DDR3 SDRAM soft controller (or x32 hard intellectual property (IP) controller)
Communication ports
HSMC Port B (Four transceiver channels)
FMC Port (Ten transceiver channels)
Chip-to-chip bridge with 29 LVDS inputs and 29 LVDS outputs, and x8 transceivers
One serial digital interface (SDI) channel
Bull's Eye connector (One 6-Gbps transceiver channel)
Bull's Eye connector (One 10-Gbps transceiver channel)
SMA connector (One 10-Gbps transceiver channel)
Configuration
JTAG
FPP PFL
Buttons, switches, LEDs, and displays
One CPU reset push button
Three user push buttons
Eight DIP switches
16 user LEDs (eight bi-color diodes)
Miscellaneous
EPM2210GF324 system controller
EPM570GM100 on-board USB-Blaster™ II download cable
Clocking
50 MHz and 148.5-MHz oscillator
100 MHz and four 4 output programmable oscillators
SMA input (LVPECL)
Power
Laptop DC input
PCIe edge connector
System monitoring
Power (voltage, current, and wattage)—per unit per rail
The Altera® Arria® V GT FPGA Development Kit provides a complete design environment that includes all the hardware and software that you need to develop full FPGA designs and test them within a system environment. The development kit is RoHS compliant, and includes the following features:
- Two FPGAs for system-level design
- Arria V GT FPGA: 504K logic elements (LEs), F1517 package, 36 6G tranceivers, and I3 speed grade
- Three I/O expansion slots: two high-speed mezzanine cards (HSMCs) and one FPGA mezzanine card (FMC)
- 2 GB of DDR3 SDRAM memory, 4.5 MB of QDR II+ memory, and 1 Gb of flash memory
- Two SFP+ connections
- SMAs and the new Samtec Bull's Eye connectors
- Ability to measure individual power rails on each chip
